Winfartools

Matt / Mirror / Satin / Black Chrome / Color Electro-deposition Finish

72-teeth needs as little as 5 ° to move fastener while a regular wrench needs 30 ° of sweep space

Made of heat-treated Chrome Vanadium Steel for strength exceeding international specifications

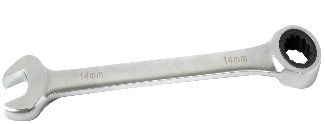

REGULAR GEAR WRENCH Chrome Vanadium Steel

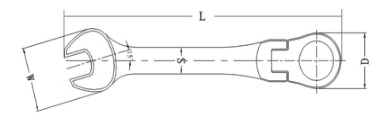

METRIC	SAE	WEIGHT	D	W	S	L
8	5/16	29g	18.0	18.8	7.6	129
9	-	41g	19.5	20.8	8.2	139
10	3/8	50g	21.0	22.8	8.8	149
11	7/16	57g	23.0	24.9	9.6	159
12	-	66g	24.5	26.8	10.4	169
13	1/2	82g	26.5	29.0	11.2	179
14	9/16	94g	28.0	31.1	12.0	189
15	-	117g	29.5	32.8	12.6	199
16	5/8	136g	31.5	34.3	12.9	209
17	11/16	146g	33.0	36.1	13.6	219
18	-	173g	34.0	38.3	14.2	229
19	3/4	195g	35.0	40.3	14.8	239

Flex Box tiles 180 at any interval with continuous head tension

Matt / Mirror / Satin / Black Chrome / Color Electro-deposition Finish

72-teeth needs as little as 5 ° to move fastener while a regular wrench needs 30 ° of sweep space

Made of heat-treated Chrome Vanadium Steel for strength exceeding international specifications

REGULAR FLEXIBLE GEAR WRENCH Chrome Vanadium Steel
METRIC	SAE	WEIGHT	D	W	S	L
8	5/16	38g	18.5	16.5	7.5	141
9	-	44g	18.5	18.5	8.5	148
10	3/8	62g	21.6	21.0	9.3	161
11	7/16	70g	21.6	23.0	10.3	165
12	-	87g	24.0	25.0	11.0	173
13	1/2	104g	26.4	27.0	11.8	180
14	9/16	121g	28.2	29.0	12.5	190
15	-	137g	28.2	31.0	13.2	200
16	5/8	172g	32.2	33.8	14.4	210
17	11/16	196g	32.2	35.3	15.1	225
18	-	232g	34.7	37.8	15.9	235
19	3/4	248g	34.7	39.3	16.5	245
